When products are made compatible with CC-Link IE TSN… This not only ensures the system flexibility unique to multi-vendor products, but also provides an opportunity for the competitive strength of the product to reach the global level.
In order to speedily and reliably develop CC-Link IE TSN compatible products, Mitsubishi Electric provides support in all aspects, including providing development tools.
Developable Stations / Certification Classes
| Development tool | Station type | Certification class | Product name |
|---|---|---|---|
| Dedicated Communication LSI | Master/ Local station |
Class B devices | Designated communication LSI for development of CC-Link IE TSN Master/Local Station (CP610) |
| Remote station | Class B/A devices | Communication LSI with Built-in GbE-PHY for development of CC-Link IE TSN Remote Station (CP620) |
Development Method

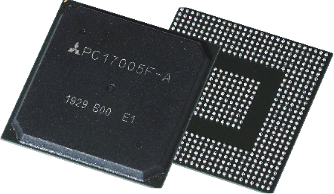

Designated communication LSI for Master/Local station CP610
This is a communication LSI that allows to develop devices that perform cyclic transmission or transient transmission without being aware of the protocol. The CP610 is controlled by software.
Communication LSI with Built-in GbE-PHY for development of
CC-Link IE TSN Remote Station (CP620)
LSI that integrates an ASIC for CC-Link IE TSN communication, MPU and GbE-PHY.
It allows devices that perform cyclic transmission and transient transmission to be developed without having to implement the protocol.
Features and benefits of development methods
Designated communication LSI for Master/Local station CP610
- ❶CC-Link IE TSN master/local stations can be developed without consideration of protocols.
- ❷The MPU and OS can be selected as needed, and sample code is provided that can be customized according to the selected hardware specifications and application.
- ❸The CC-Link IE TSN configuration tool included in the source code development kit can be used to configure parameter settings and run diagnostics on CC-Link IE TSN master/local stations.
- ❹As a transmission line route simulation model, a SPICE model is available for PCI Express® interface, and an IBIS model is available for other interface*.

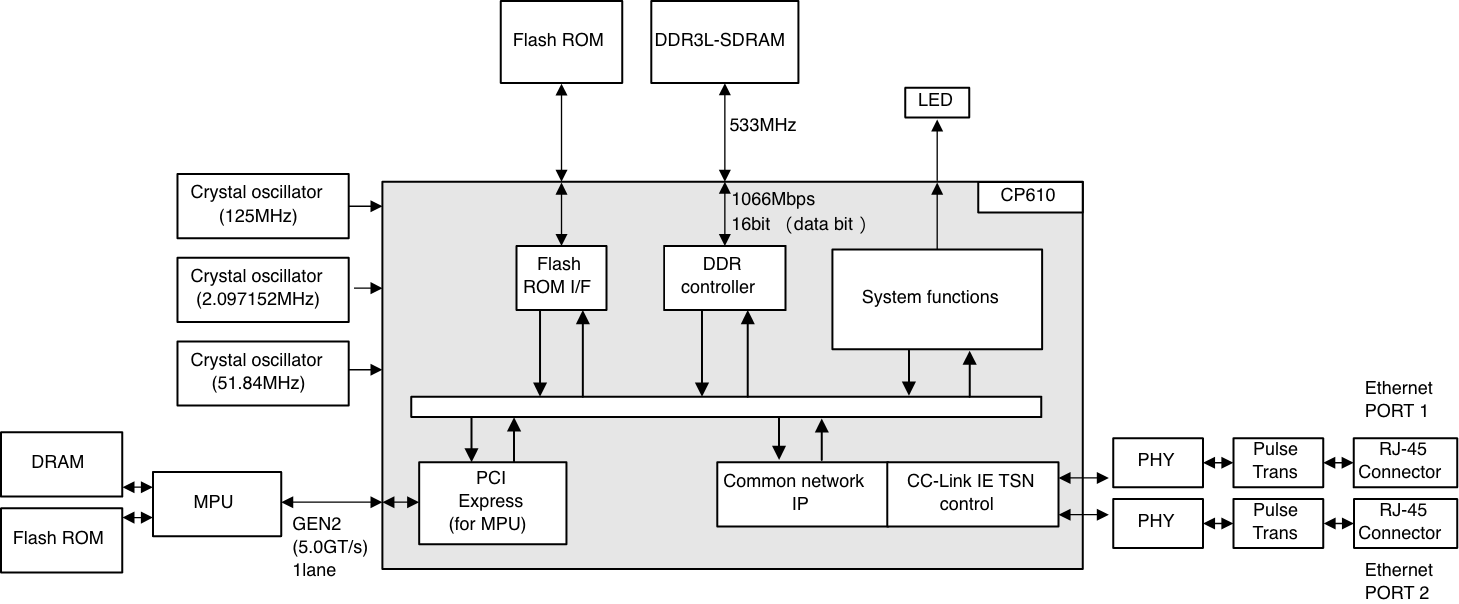

- Block diagram
Conclusion of a confidentiality agreement is required in order to receive the SPICE model or IBIS model. Please contact a branch office or the Open System Center.
Communication LSI with Built-in GbE-PHY for development of CC-Link IE TSN Remote Station (CP620)
- ❶CC-Link IE TSN remote stations can be developed without consideration of protocols.
- ❷The inclusion of the GbE-PHY makes it easier to design communication circuit patterns. In addition, only a small number of peripheral components and circuits are required for the CPU and GbE-PHY, enabling development of more compact circuit boards.
- ❸The provided sample code can be customized to suit the applicable hardware specifications and applications.
- ❹The included H/W-RTOS reduces the CPU load and enables a lower power consumption in the developed equipment.
- Block diagram
