特長

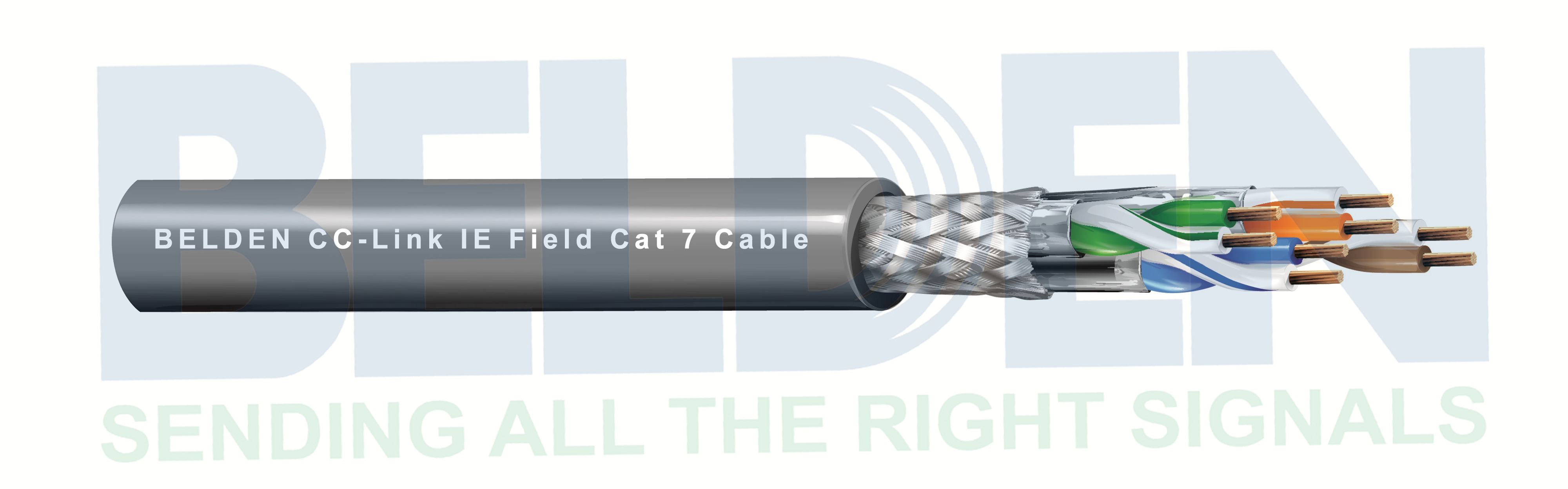

• Cable standard (category): Category 7
• Number of pairs: 4
• Conductor size (AWG#): 23
• Insulation material: FMPE – Foam Polyethylene
• Cable outer diameter/finish outer diameter: 9.0 mm
• Jacket Material Characteristics:
  • Outer sheath material: LSZH (SHF1) – Low Smoke Zero Halogen
  • Flame retardant & low smoke
  • Low Corrosion
  • Excellent Oil Resistance
  • Weathering resistance to UV and harsh environments
• Min. Bend Radius: 80mm
• Reference Standards: IEC 61156-5, ISO/IEC11801, IEC 60092-360, JIS C3005, UL 444
• CC Link IE Field Network Certified RT-F222, Reference Number 196
• Flame Retardant Standards:
  • IEC 60332-1-2 vertical flame propagation for a single insulated wire or cable
  • IEC 60332-3-22 Category A vertical flame spread of vertically-mounted bunched wires or cables
  • IEC 61034-2 smoke density for cables burning under defined conditions ≥ 60%
• Halogen Acid Gas Content: IEC 60754-1 amount of halogen acid gas evolved during the combustion of
  each combustible material of a cable is 0.5% (max.)
• Acid Gas Emission pH & conductivity: IEC 60754-2 degree of acidity of gases evolved during combustion pH ≥4.3, conductivity <10μS/mm
• Certificates & Approvals: DNV Certified & ABS Type Approved
• UV/Sunlight Resistance: 300 hr
• Oil Resistance: ICEA S-73-532
• Operating temperature range: -25°C To 80°C
• EU RoHS Compliant
