Belden Hirschmann Solutions (Shanghai) Company Limited

PF3LDLDxxxMLAXA – CC-Link IE Control - Fiber Express Armoured LSZH Fiber Patch Cord, LC-LC Duplex, Multimode, OM3

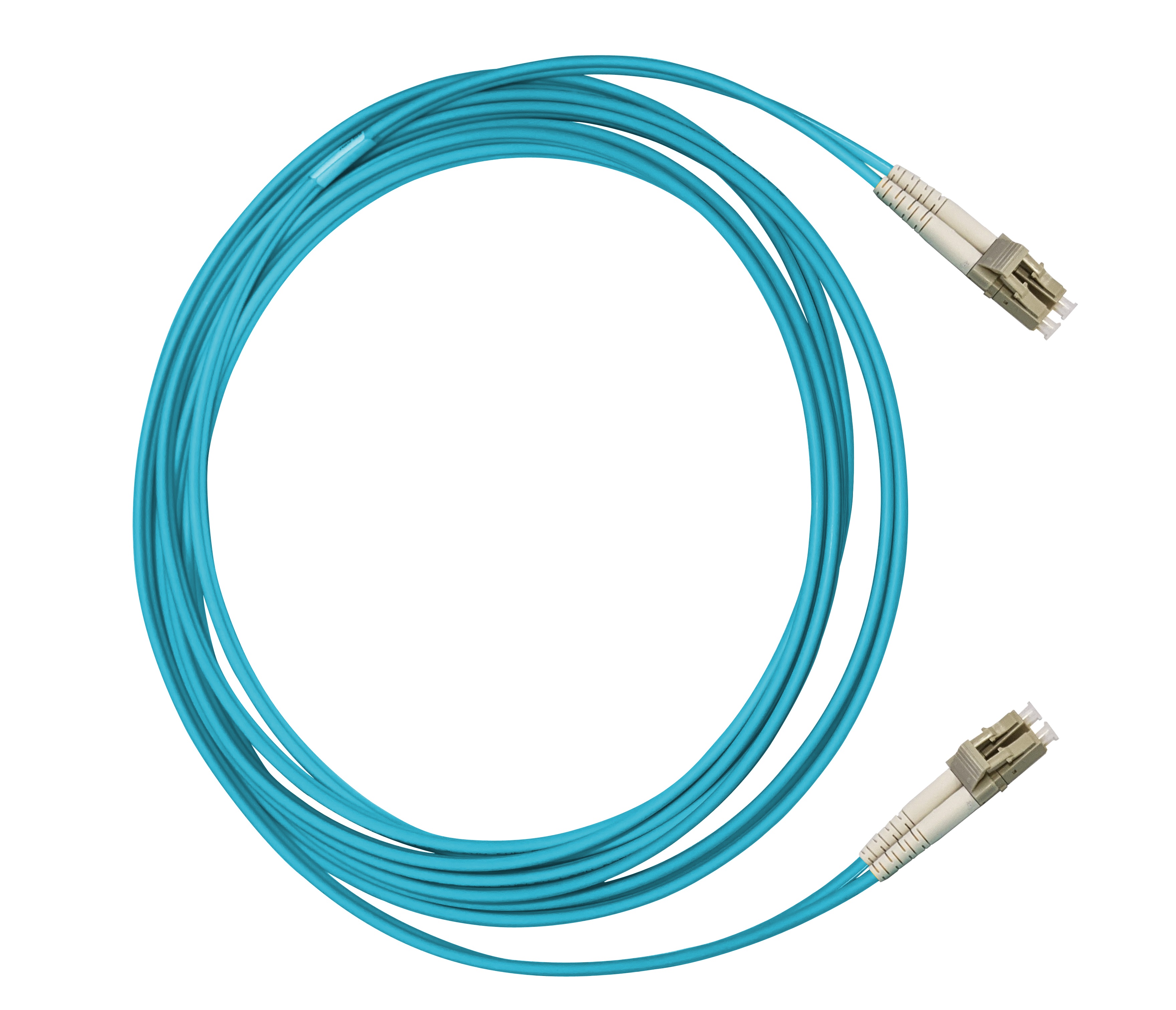

BELDEN Armoured patch cord assembly is made of Duplex Zipcord 3.0 mm Multimode 50 micron, OM3, Fiber cable connectorized with LC Duplex connectors at both ends. The insertion loss is specified at a maximum of 0.25 dB for Individual Connectors on each Side.

特長

  • CC-Link IE Controller Network certified: Reference Number – NRT-IC-00001
  • Architectural Flexibility: Low Insertion Loss of 0.25dB LC connectors.
  • Simplified Polarity Management: Easy-to-use Duplex clips.
  • Better Quality: Exhaustive design validation against TIA Standards.
  • Available in standard Aqua colour jacket & Low smoke zero halogen.
  • Custom length configuration capabilities (Standard packing length of 1 to 29 meter in plastic bag & 30 to 500 Meter in reel).
  • Suitable Applications:
    · Data Centers
    · Main Equipment Rooms
    · Telecommunication Rooms and Work Area
  • Mechanical Characteristics: (For Cable Only):
    · Max. Tensile Strength Single Jacket– Short Term: 300N
    · Max. Crush Resistance – Short Term: 3000N/100mm
  • Bending Radius:
    · Installation Bending Radius: 60mm
    · Operation Bending Radius: 30mm
  • Optical Characteristics (OM3):
    · Insertion Loss: ≤ 0.25dB @ 850nm (For Individual Connectors)
    · Return Loss: ≥ 25dB @ 850nm (For Individual Connectors)
  • Standards and Compliance:
    · Telecommunication Standard: TIA 568.3
    · RoHS Compliant 2011/65/EU
局種別または製品の種類
伝送可能距離
ケーブル外径/外形寸法
質量
標準価格

お問い合わせ先

[日本]
  • 会社名 : Belden Japan
  • 住所 : 〒100-005 神奈川県横浜市西区みなとみらい2-2-1 横浜ランドマーク 5F
  • 電話番号 : +81-45-285-3676
  • e-mail : japan.sales@belden.com
  • For more information, visit us at: https://www.belden.com
