  5. PF3LDLDxxxML2XA – CC-Link IE Control - Fiber Express Duplex LSZH Patch Cord, LC-LC Duplex, Multimode, OM3

製品情報

CC-Linkパートナー製品情報

CC-Link IE Control|周辺機器(光ファイバケーブル)|ケーブル・コネクタ

Belden Hirschmann Solutions (Shanghai) Company Limited

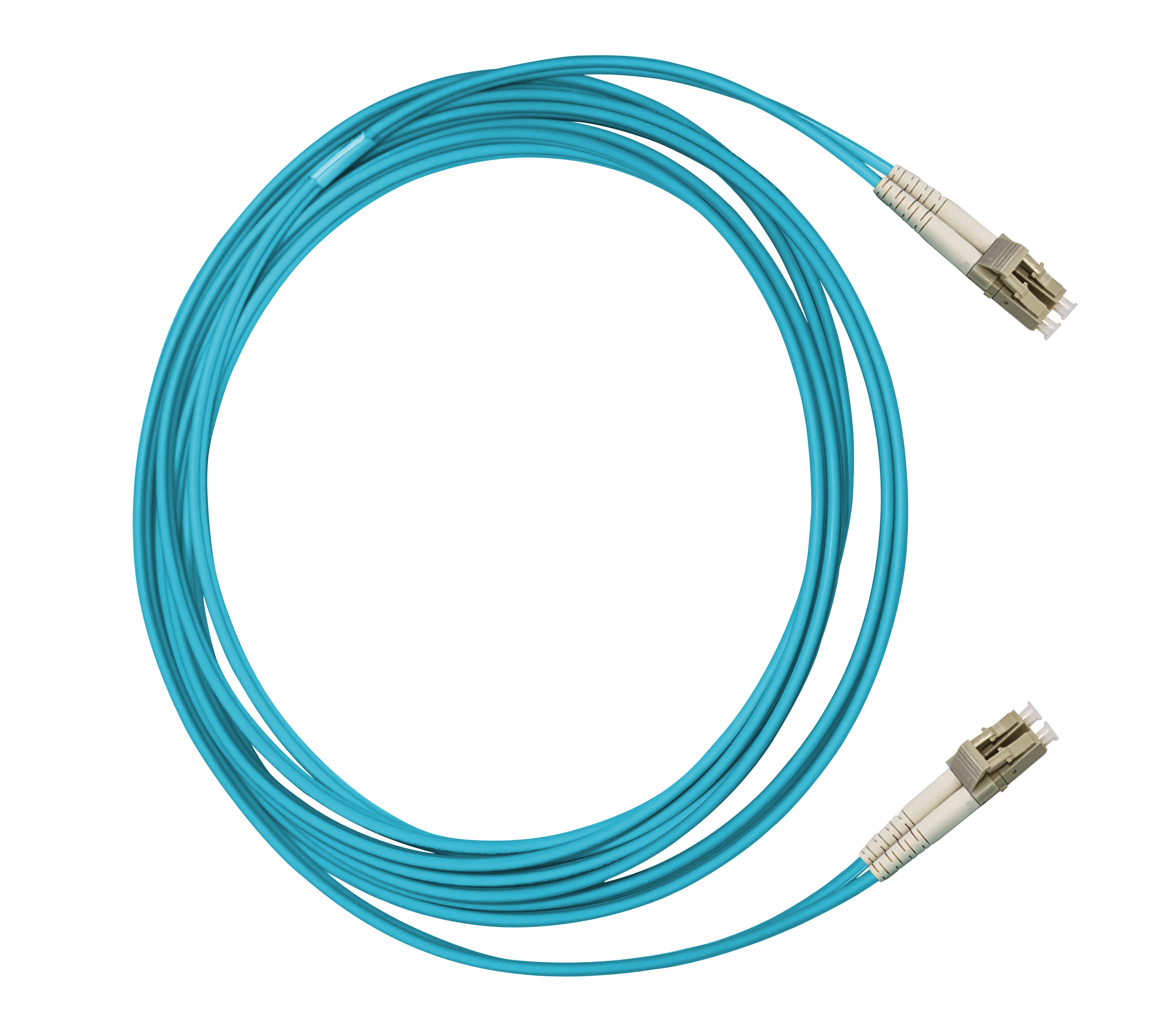

PF3LDLDxxxML2XA – CC-Link IE Control - Fiber Express Duplex LSZH Patch Cord, LC-LC Duplex, Multimode, OM3

BELDEN patch cord assembly is made of Duplex Zipcord 2.0 mm Multimode 50 micron, OM3, Fiber cable connectorized with LC Duplex connectors at both ends. The insertion loss is specified at a maximum of 0.25dB for Individual Connectors on each Side.

特長

  • CC-Link IE Controller Network certified: Reference Number – NRT-IC- 00002
  • Architectural Flexibility: Low Insertion Loss of 0.25dB LC connectors.
  • Easy Installation: Deploy in dense cable trays with smaller-diameter cord options.
  • Simplified Polarity Management: Easy-to-use Duplex clips.
  • Better Quality: Exhaustive design validation against TIA Standards.
  • Available in standard Aqua colour jacket & Low smoke zero halogen.
  • Custom length configuration capabilities (Standard packing length of 1 to 29 meter in plastic bag & 30 to 500 Meter in reel).
  • Suitable Applications:
    · Data Centres
    · Main Equipment Rooms
    · Telecommunication Rooms and Work Area
  • Standards and Compliance:
    · Telecommunication Standard: TIA 568.3-D
    · Connector Standards: IEC 61754, TIA 604
    · Cable Standards: IEC 60794, IEC 60332 & NFPA 262
    · Complies with EU RoHS Directives.
  • Mechanical Characteristics: (For Single Jacket):
    · Max. Crush Resistance – Short Term: 500N/100mm
    · Max. Crush Resistance – Long Term: 100N/100mm
  • Optical Characteristics (OM3):
    · Insertion Loss: ≤ 0.25dB @ 850nm (For Individual Connectors)
    · Return Loss: ≥ 25dB @ 850nm (For Individual Connectors)
局種別または製品の種類
伝送可能距離
ケーブル外径/外形寸法
質量
標準価格

お問い合わせ先

[日本]
  • 会社名 : Belden Japan
  • 住所 : 〒100-005 神奈川県横浜市西区みなとみらい2-2-1 横浜ランドマーク 5F
  • 電話番号 : +81-45-285-3676
  • e-mail : japan.sales@belden.com
  • For more information, visit us at: https://www.belden.com
