CC-Link IE Field｜周辺機器｜ケーブル・コネクタ
Belden Hirschmann Industries（Suzhou）Ltd.

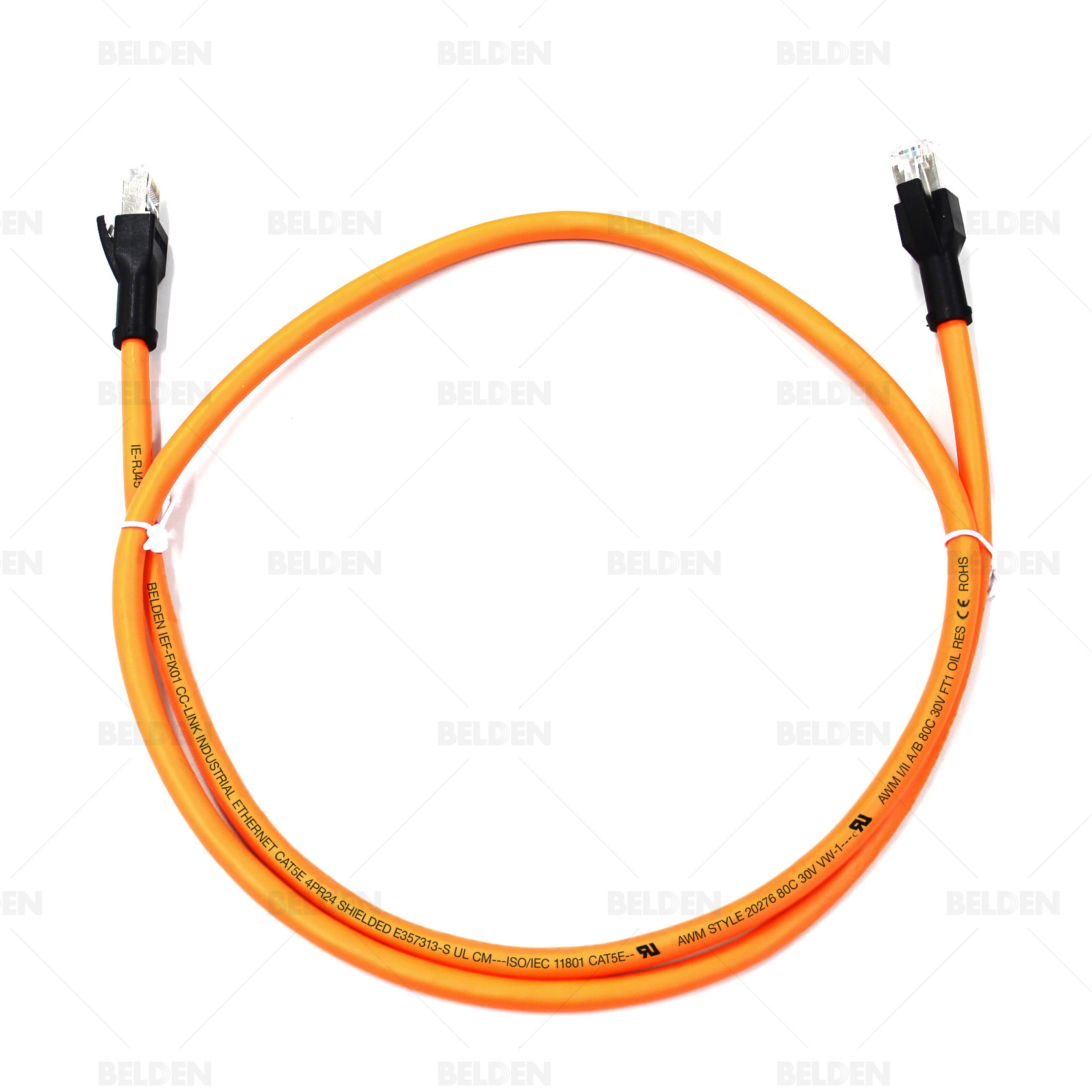

IE-RJ45-RJ45-xxM CC-Link IE Field Category 5e 1000 Mbps Double-Ended Cord set
CC-Link IE Field Category 5e 1000 Mbps Double-Ended Cord set: Male straight black RJ45 to male straight black RJ45, shielded, PVC orange cable, 8 wires.
特長
- Cable Design: 4P CAT5e SF/UTP/ PE/OS/OBS/PVC Fixed LAN Cable
- CC-Link IE Field Reference Number: NRT-IF-00028
- Conductor Material: Solid Bare Copper
- Insulation Material: Polyolefin
- No. of Cores/Pairs (cable): 4 pairs
- Shielding Type: Al-Mylar + Braid
- Shielding Material: Tinned Copper
- Outer Jacket Material: PVC
- Overall Diameter (mm): Nom. 6.70 mm
- Operational Temperature: -30°C to + 75°C
- Oil resistance: Yes
- Flame Retardant: IEC 60332-1, UL 444 (CM)
- Maximum operating voltage (V): 300 V
- RoHS Compliant: Yes
- For Connector:
Connector Type: RJ45 Male
Data Transmission: 1000 Mbit/s
Connector Pins: 8
Protection Degree / IP Rating: IP20
Shielding material: Copper alloy
Plug Housing Material: PC - Polycarbonate, UL94-V0 rated
Attachment Plating: Gold plating in contact area
| 局種別または製品の種類 | |
|---|---|
| 伝送可能距離 | |
| ケーブル外径/外形寸法 | |
| 質量 | |
| 標準価格 |
お問い合わせ先
- [日本]
-
- 会社名 : Belden Japan
- 住所 : 〒100-005 神奈川県横浜市西区みなとみらい2-2-1 横浜ランドマーク 5F
- 電話番号 : +81-45-285-3676
- e-mail : japan.sales@belden.com
- For more information, visit us at: https://www.belden.com
