Belden Hirschmann Industries（Suzhou）Ltd.
IEM-RJ45-RJ45-xxM CC-Link IE Field Category 5e 1000 Mbps Double-Ended Cord set

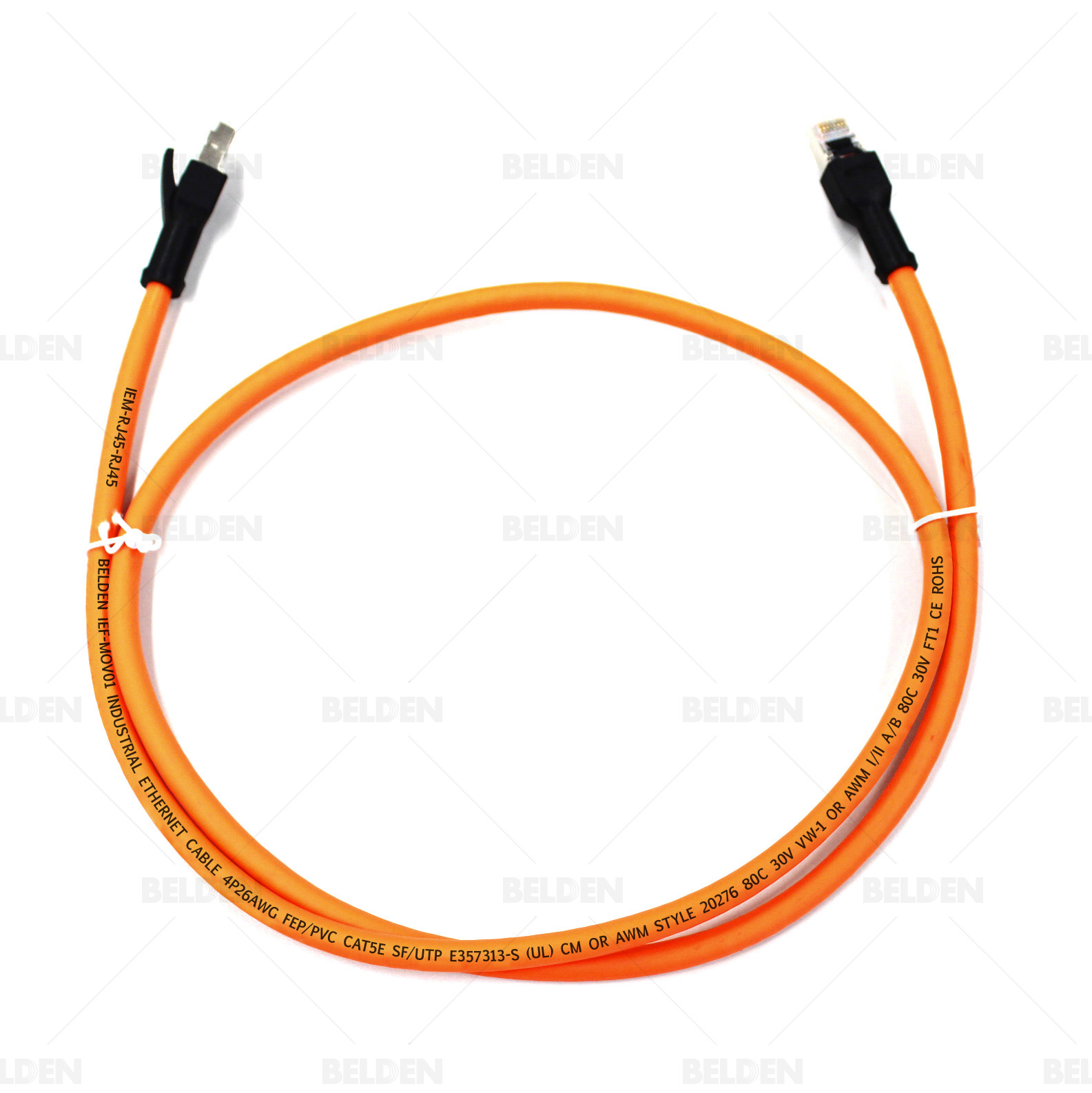

CC-Link IE Field Category 5e 1000 Mbps Double-Ended Cord set: Male straight black RJ45 to male straight black RJ45, shielded, PVC orange cable, 8 wires.
特長
- Cable Design: 4P Cat 5e SF/UTP PVC Cable
- Conductor Material: Copper alloy
- Insulation Material: FEP
- No. of Cores/Pairs (cable): 4 pairs
- Shielding Type: Overall Foil Shield with Tinned wire Braid
- Shielding Material: Tinned Tinsel Braid
- Outer Jacket Material: PVC
- Overall Diameter (mm): Nom. 6.90 mm
- Operational Temperature: -20°C to + 80°C
- Flame Retardant: VW-1
- Reverse Bending Test: 20 million (R=40 mm)
- Torsion Test: 20 million (+/- 180ᵒ, L=300 mm)
- Trailing Chain Test: 20 million (R=38 mm)
- Maximum operating voltage (V): 30 V
- Characteristics Impedance: 100 ± 15 Ohms
- RoHS Compliant: Yes
- For Connector:
Connector Type: RJ45 Male
Data Transmission: 1000 Mbit/s
Connector Pins: 8
Protection Degree / IP Rating: IP20
Shielding material: Copper alloy
Plug Housing Material: PC - Polycarbonate, UL 94-V0 rated
Attachment Plating: Gold plating in contact area
| 局種別または製品の種類 | |
|---|---|
| 伝送可能距離 | |
| ケーブル外径/外形寸法 | |
| 質量 | |
| 標準価格 |
