Hilscher Gesellschaft für Systemautomation mbH

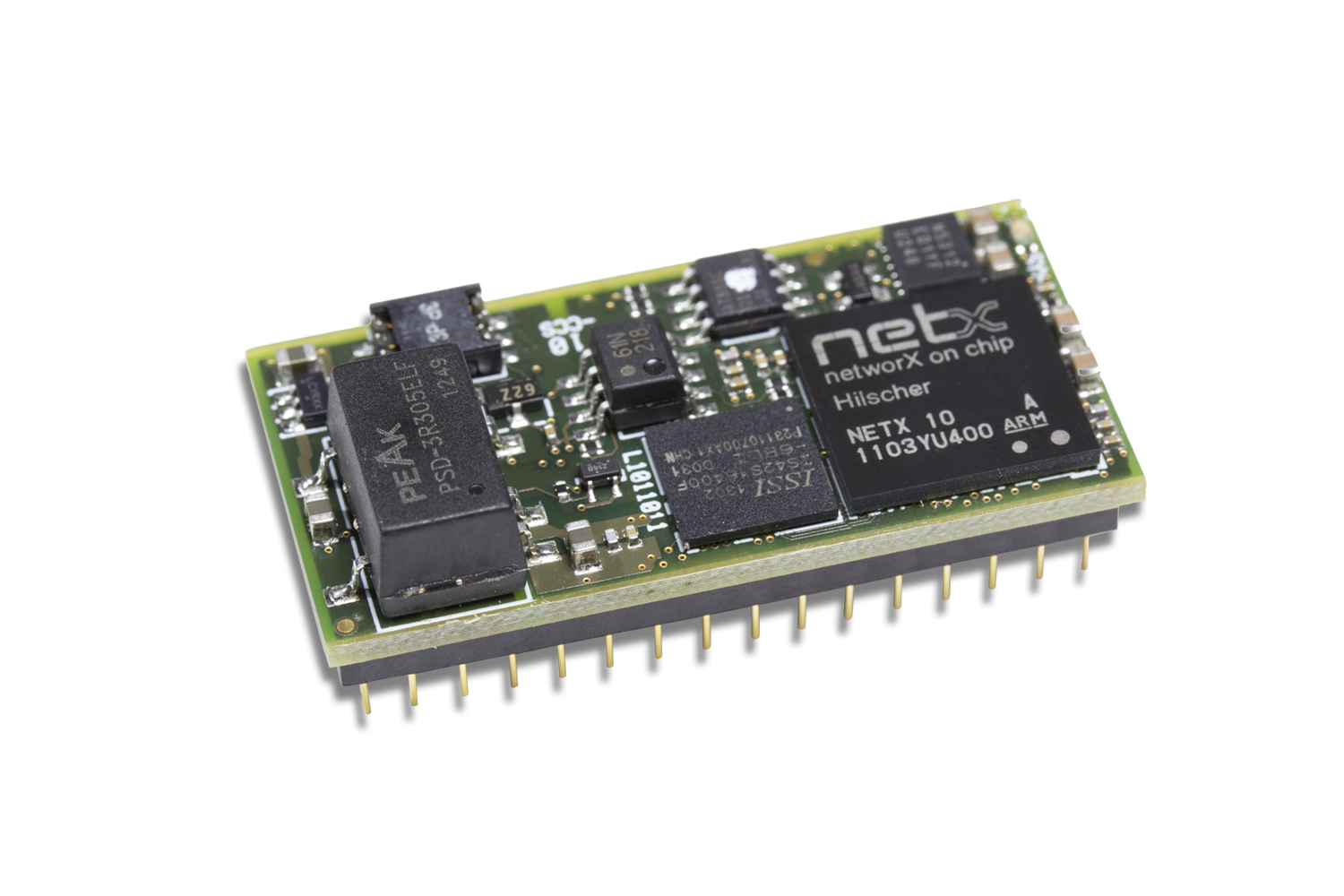

NIC 10-CCS - DIL-32 communication IC for CC-Link Slave
Communication for simple slave devices with or without own host processor
特長
- Compact DIL-32 communication module for cost-efficient field devices
- Modbus RTU protocol via SPI or UART to the host
- CC-Link slave interface including bus logic
- Direct I/O data transfer via external shift registers
- One design for all networks due to standard interfaces
- Certified CC-Link interface
| 局種別 | Remote I/O station and Remote device station |
|---|---|
| 占有局数 | 4 |
| プロトコルバージョン | V1.1 and V2.0 |
| 外形寸法 | 42 x 21 x 17,4 mm (including pins) |
| 質量 | |
| 標準価格 |
