Kistler Lorch GmbH

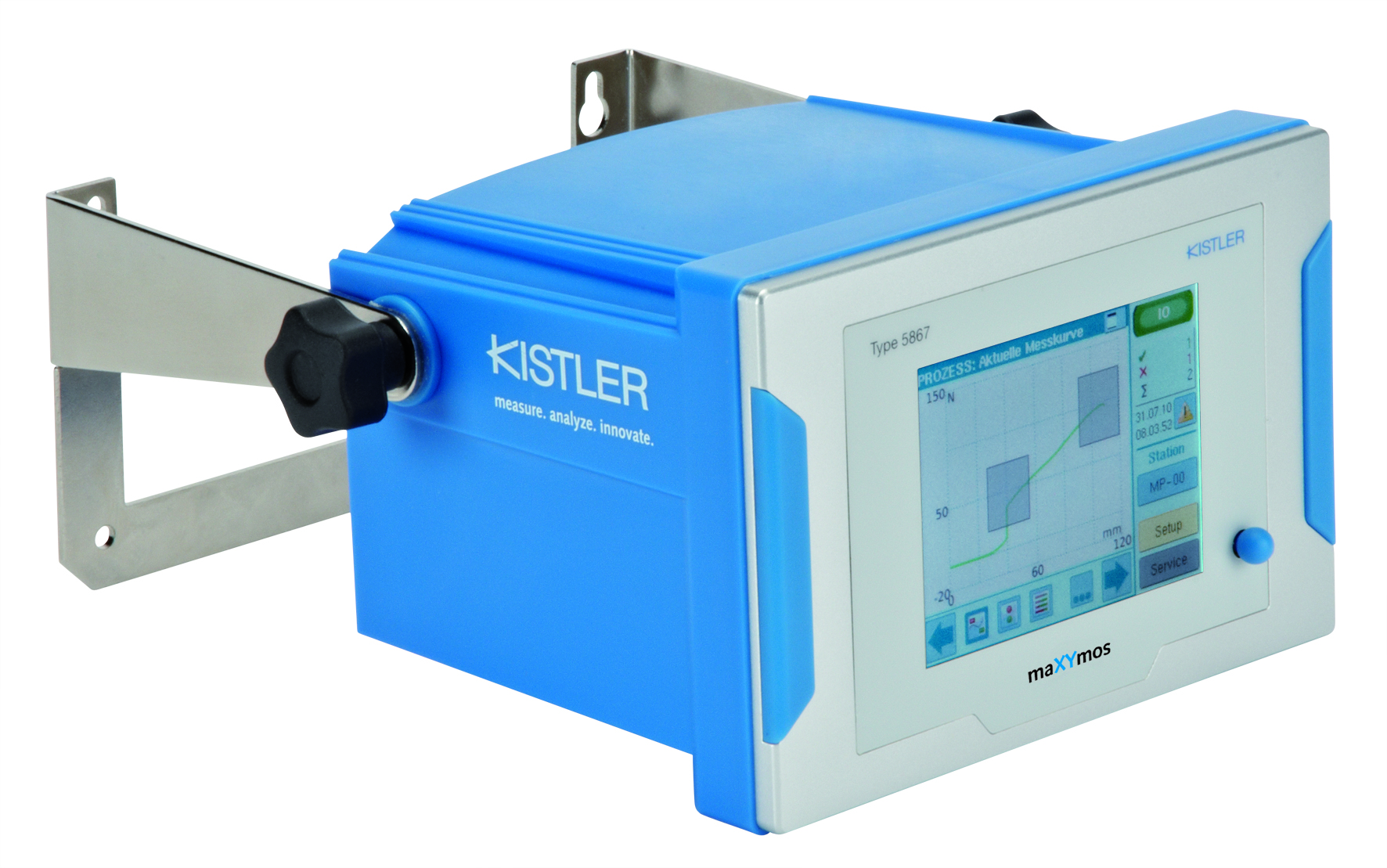

maXYmos BL 5867B
The maXYmos BL monitors and evaluates XY curves of two measurands that have to stand in a certain relation to each other. The quality of an individual manufacturing step, as assembly or the entire product can be determined on this relation.
特長
- Measurement function: Y(X), Y(X, t), Y(t) and X(t)
- Short evaluation time of up to 10 parts/second
- Ethernet TCP/IP for measurement data and remote maintenance
- Dig. IO (24 V) for control and results
- 2 switch signals in real time for X- and Y-threshold
- Sensor for X channel: Potentiometer and ±10 V
- Sensor for Y channel: strain gage or piezoelectric
- Information pages for NOK cause diagnosis
- 3,5" color touch screen display
| 局種別 | Remote device station |
|---|---|
| 占有局数 | 4 stations |
| プロトコルバージョン | V. 2.00 |
| 外形寸法 | - |
| 質量 | max. 840g |
| 標準価格 | Offers on request |
