Weidmueller Interface GmbH & Co. KG

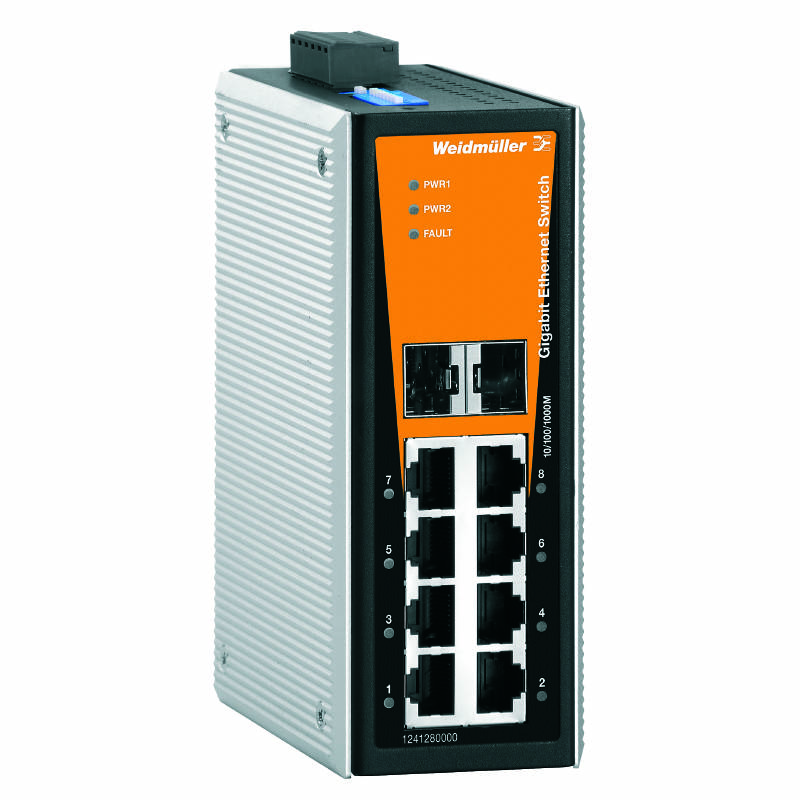

Industrial Gigabit Ethernet Switch - IE-SW-VL08T-6GT-2GS ; 1286870000
Network switch, unmanaged, Gigabit Ethernet, Number of ports:
6x RJ45 10/100/1000BaseT(X), 2x combo-port (10/100/1000BaseT(X) or 100/1000BaseSFP) IP30, -40 °C…75 °C
特長
- Operating temperature: -40 °C…75 °C
- Redundant dual 12/24/48 VDC power inputs
- Supports jumbo frame transmission up to 9.6 KB
- Relay output warning for power failure and port break alarm
- Support for IEEE 802.3az Energy-Efficient Ethernet
- SFP-Slot for use with SFP-Transceiver to realize Gigabit fiber optic uplink
外形寸法 | 53.6 mm x 135 mm x 105 mm |
---|---|
質量 | 0,85kg |
標準価格 |
