Emerson Industrial Automation - ASCO

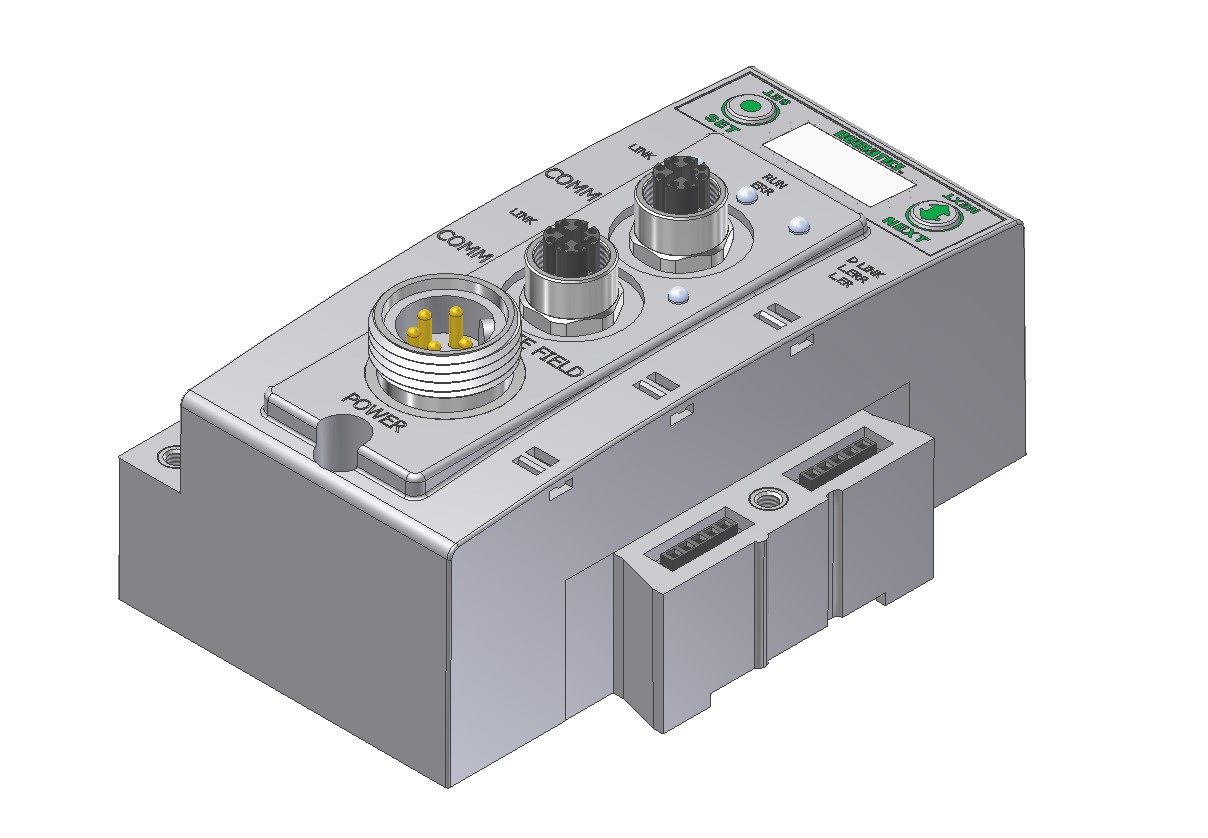

G3 CC-Link IE Field™ Communications Module (node)
G3 nodes for CC-Link IE Field™ have an integrated graphic display and are capable of addressing combinations of up to 1200 outputs and 1200 inputs.
特長
- Innovative graphic display for settings and diagnostics, simple and efficient distribution for up to 17 manifolds per communication node, interfaces to 501, 502, 503, 2002, 2005, 2012, 2035, ISO 15407-2 & ISO 5599/II pneumatic valve series, up to 128 valve solenoids per manifold, one node supports 16 I/O modules, IP65, and supports a temperature range of -23°C to +50°C.
| 局種別 | Normal Station |
|---|---|
| 占有局数 | 1 Station |
| 外形寸法 | 67.5 mm x 118.1 mm x 56.3 mm |
| 質量 | 269g |
| 標準価格 | Price Available Upon Request |
