CC-Linkパートナー製品情報
CC-Link IE Field Basic｜リモート｜電磁弁
Pneumax S.P.A.

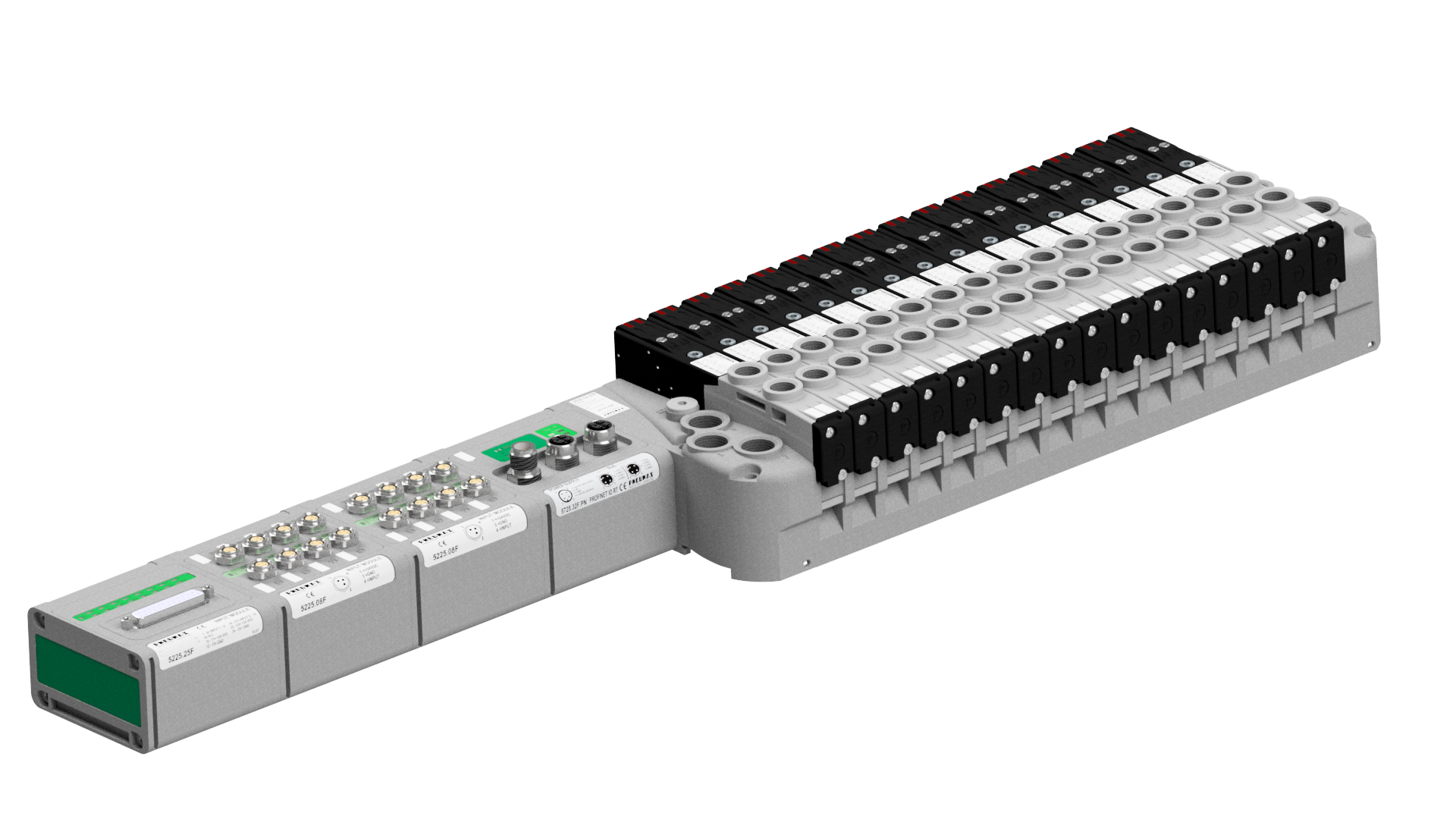

SERIE 2500 OPTYMA-F
Optyma-F has been designed in order to complete the Optyma series of valves. It integrates many technical features which make the product interesting such as the integrated electrical connection.
特長
- Electrical connection is directly integrated into the base.
Possibility to integrate with Fieldbus modules.
The electrical signals available are 32 (can be used to build up a manifold of 32 monostable valves, 16 bistable valves or any combination within that limit).
Possibility to connect input modules (5225.08F or 5225.25F).
Large use of technopolymer material reduces the overall weight of the manifold.
| 局種別または製品の種類 | リモート局 |
|---|---|
| 占有局数 | 1-4 |
| プロトコルバージョン | 2 |
| 外形寸法 | 78 mm x 82 mm x 62 mm (node dimension) |
| 質量 | 0,310 Kg approximately (node weight) |
| 標準価格 | Contact for more information |
CSP+ファイル
| 英語版 | 0x3622_OptymaCl_1_en.zip |
お問い合わせ先
- [日本]
-
- Company name : Pneumax S.p.A.
- Address : Via Cascina Barbellina, 10, Lurano, Italy
- Telephone : +39 035 4192777
- Mail : info@pneumaxspa.com
製品詳細: https://pneumaxspa.com/en/products/series-2500-optyma-f-serial-systems/
