CC-Linkパートナー製品情報
CC-Link IE TSN｜周辺機器｜ケーブル・コネクタ
Belden Hirschmann Industries（Suzhou）Ltd.

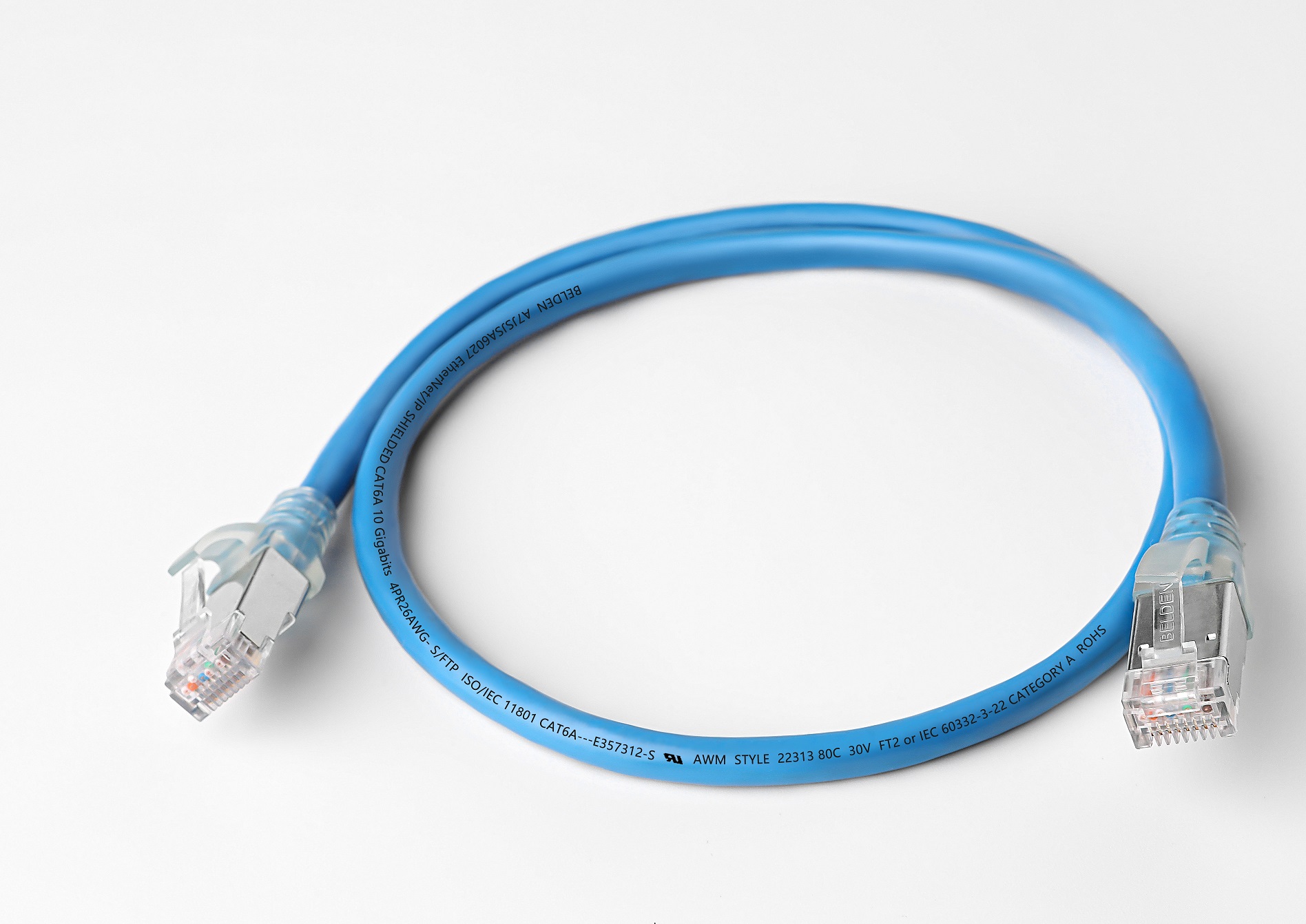

A7JSJSA6028 - CC-Link IE TSN CAT6A 10 Gigabit Ethernet double-ended cord set
Ethernet/IP CAT6A 10 Gigabit Ethernet double-ended cord set ,Male straight
transparent RJ45 to male straight transparent RJ45, shielded, TPE, 4 Pairs
特長
- Cable Design : 4P 26AWG Cat 6A S/FTP PU Patch Cable
- Conductor Material : Stranded Bare Copper
- Insulation Material : Polyolefin
- No. of Cores/Pairs (cable) : 4 pairs
- Shielding Type : Each pair with individual foil + overall braid shield
- Shielding Material : Copper alloy
- Outer Jacket Material:TPE
- Overall Diameter (mm):Nom. 6.2 mm
- Operational Temperature: -25°C to + 70°C
- Oil resistance : Yes
- Flame Retardant: FT2, IEC60332-1, IEC 60332-3A
- Maximum operating voltage (V): 30 V
- RoHS Compliant : Yes
- For Connector :-
Connector Type : RJ45 Male
Data Transmission :10 Gbps
Connector Pins : 8
Protection Degree / IP Rating : IP 20
Shielding : Shielded
Plug Housing Material : PC - Polycarbonate, UL94-V0 rated
Attachment Plating : Gold plating in contact area
| 局種別または製品の種類 | |
|---|---|
| 通信速度 | 1Gbps,100Mbps |
| 伝送可能距離 | |
| ケーブル外径/外形寸法 | Overall Diameter (mm) : Nom. 6.2 mm |
| 質量 | |
| 標準価格 |
お問い合わせ先
- [日本]
-
- 会社名 : Belden Japan
- 住所 : 〒100-005 神奈川県横浜市西区みなとみらい2-2-1 横浜ランドマーク 5F
- 電話番号 : +81-45-285-3676
- e-mail : japan.sales@belden.com
