特長

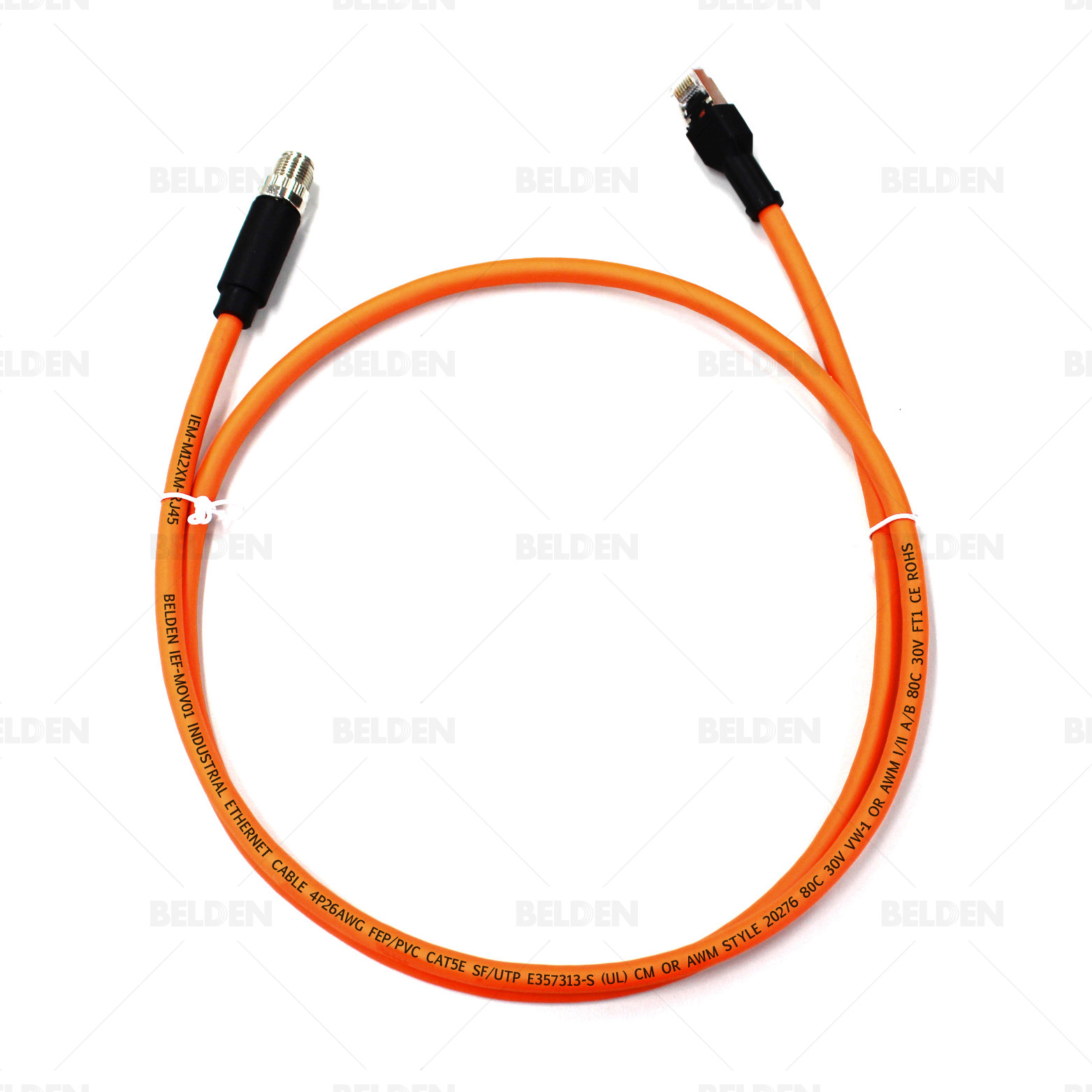

• Cable Design: 4P CAT5e SF/UTP MOV PVC Cable
• CC-Link IE TSN Reference Number: NRT-IT-00042
• Conductor Material: Copper Alloy
• Insulation Material: FEP
• No. of Cores/Pairs (cable): 4 pairs
• Shielding Type: Overall Foil Shield with Tinned Tinsel wire Braid
• Shielding Material: Tinned Tinsel braid
• Outer Jacket Material: PVC
• Overall Diameter (mm): Nom. 6.90 mm
• Operational Temperature: -20°C to + 80°C
• Flame Retardant: VW-1
• Reverse Bending test: 20 million (R = 40 mm)
• Torsion test: 20 million (+/-180°, L = 300 mm)
• Trailing chain test: 20 million (R = 38 mm)
• Maximum operating voltage (V): 30 V
• Characteristics Impedance (Ω @ 1-100MHz): 100 ± 15 Ω
• RoHS Compliant: Yes
• For Connector Type: M12 Standard
  Data Transmission: 1000 Mbit/s
  Connector Pins: 8
  Coding: X-coded
  Contact Resistance: ≤ 10 mOhm
  Insulation Resistance: > 10ᶺ8 Ohm
  Mating Cycles: ≤ 100
  Protection Degree / IP Rating: IP65 & IP67
  Contact plating: Cu/Au
  Flammability class (Contact Bearer): UL 94 V-0
  Flammability class (Moulded Body): UL 94 HB rated
  Attachment Material: CuZn
  Attachment Plating: Nickel-plated
  Shielding Material: CuZn, tin-plated
  Fastening Torque (Attachment): M12x1: 50-60 N-cm, hand-tight
• For Connector Type: RJ45 Male
  Data Transmission: 1000 Mbit/s
  Connector Pins: 8
  Protection Degree / IP Rating: IP20
  Shielding material: Copper alloy
  Plug Housing Material: PC - Polycarbonate, UL 94 V-2 rated
  Attachment Plating: Gold plating in contact area
