Belden Hirschmann Industries（Suzhou）Ltd.

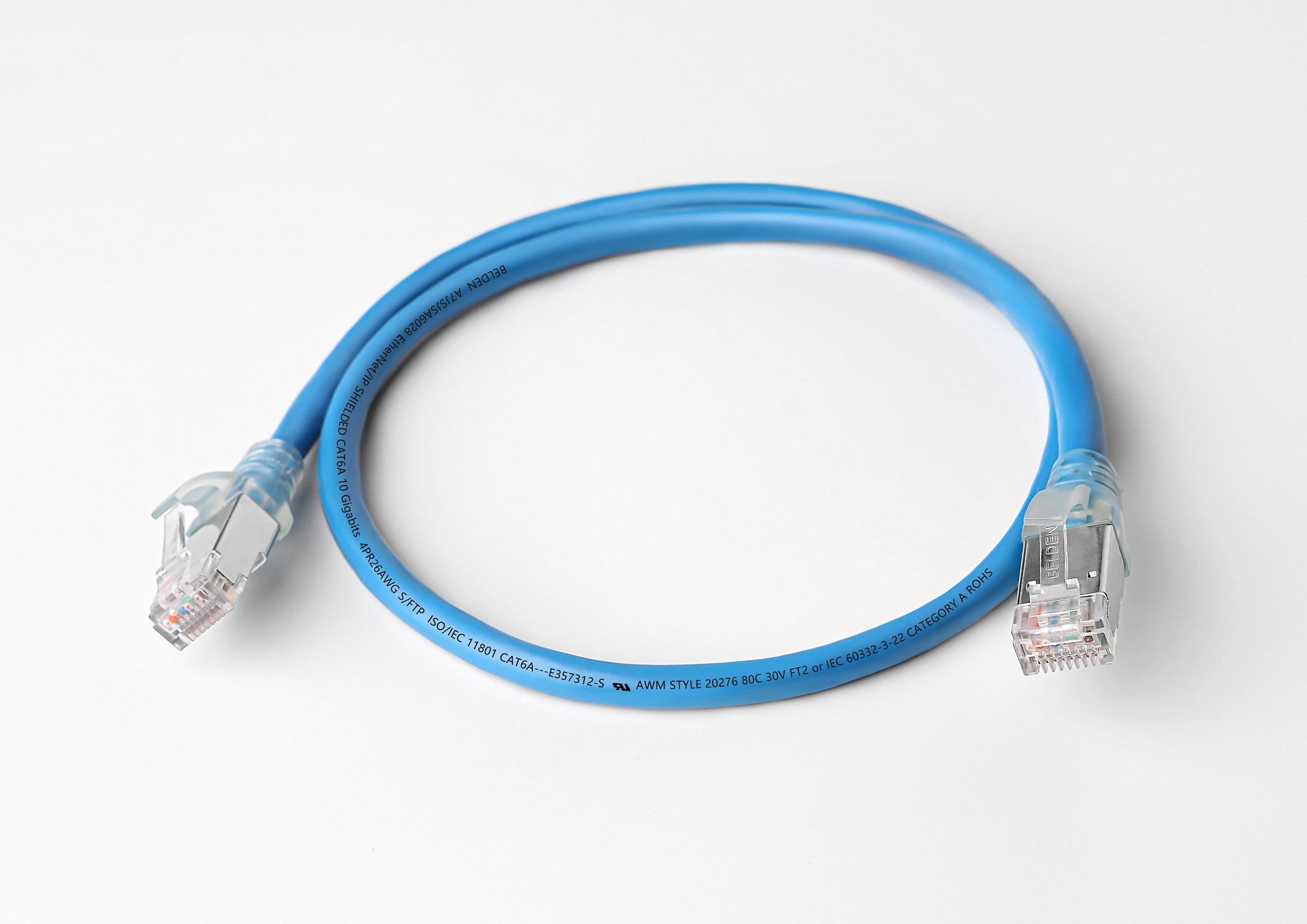

A7JSJSA6023-CC-Link IE TSN CAT6A 10 Gigabit Ethernet double-ended cordset
CC-Link IE TSN CAT6A 10 Gigabit Ethernet double-ended cordset, Male straight
black RJ45 to male straight black RJ45, shielded, PVC blue cable, 4 Pairs.
特長
- Cable Design : 4P 26AWG Cat 6A S/FTP PVC Patch Cable
- Conductor Material : Stranded Bare Copper
- Insulation Material : Polyolefin
- No. of Cores/Pairs (cable) : 4 pairs
- Shielding Type : Each pair with individual foil + overall braid shield
- Shielding Material : Copper alloy
- Outer Jacket Material : PVC
- Overall Diameter (mm) : Nom. 6.2 mm
- Operational Temperature : -25°C to + 70°C
- Flame Retardant : FT2, IEC60332-1
- Maximum operating voltage (V) : 30 V
- RoHS Compliant : Yes
- For Connector :
Connector Type : RJ45 Male
Data Transmission : Up to 10GBase-T, Cat6A
Connector Pins : 8
Protection Degree / IP Rating : IP20
Shielding : Shielded
Plug Housing Material : PC - Polycarbonate, UL94-V0 rated
Attachment Plating : Gold plating in contact area
| 局種別または製品の種類 | |
|---|---|
| 通信速度 | 1Gbps,100Mbps |
| 伝送可能距離 | |
| ケーブル外径/外形寸法 | |
| 質量 | |
| 標準価格 |
